Wind turbine bolt tensioning is the high-precision process of stretching fasteners axially to achieve uniform clamp load, and Technofast designs and supplies the advanced hydraulic equipment to execute it.
Secure maximum joint integrity across your wind farm assets and eliminate unexpected operational downtime.
Request a custom engineering solution or rapid quote from our technical support team today.
Why Bolt Tensioning Matters for Wind Turbines
Wind turbine structures endure immense, continuous dynamic loads from unpredictable wind shear, aerodynamic braking, and constant cyclic vibration.
To safeguard structural integrity and maximise asset uptime, every critical joint must achieve and maintain an incredibly precise clamp load.
Standard tightening methods often leave bolted joints vulnerable to loosening, which accelerates structural fatigue and component failure.
Implementing specialised wind turbine bolt tensioning ensures that assemblies remain perfectly secured against extreme environmental forces.
This professional hydraulic bolt tensioning methodology provides the uniform preload necessary to protect high-vibrational joint interfaces, drastically reducing long-term maintenance costs and catastrophic field failures across wind farm assets.
-
- Mitigates Fatigue Failure: Prevents premature structural wear on critical components by maintaining exact design tension
- Maximises Operational Uptime: Eliminates unexpected turbine shutdowns caused by loose or damaged fasteners
- Extends Asset Lifecycle: Ensures uniform structural stress distribution, safeguarding the wind turbine investment for decades
Hydraulic tensioners use internal fluid pressure to generate direct axial force, locking bolts with absolute precision.
Torque vs. Tensioning: Why Tensioning Wins
Achieving a precise axial load is critical for wind turbine structural safety.
While traditional torquing relies on twisting screw threads, it is inherently compromised by the “vagaries of friction”, making it difficult to measure true bolt stretch.
The direct hydraulic bolt tensioner method utilises a pressurised, sealed internal chamber to generate a straight, axial force in the shank.
This completely eliminates thread friction, perfectly transferring pure hydraulic force into a secure mechanical hold.
| Key Feature | Traditional Torquing | Hydraulic Torquing |
|---|---|---|
| Load Accuracy | Low to Moderate | Extremely High |
| Friction Loss | High | None (Friction is eliminated) |
| Repeatability | Inconsistent across Bolts | Perfectly repeatable every time |
| Simultaneous Bolting | Difficult. Must tighten one by one | Seamless via multiple Hydraulic Bolt Tensioners |
Want a deeper technical breakdown?
Read our full engineering guide: Torque vs Tension – What’s the Difference?
Our Hydraulic Bolt Tensioning Equipment for Wind Turbines
Utilising the correct specialised tooling is essential for meeting strict wind industry OEM installation and maintenance criteria.
Technofast engineers and manufactures high-performance, field-proven solutions designed to deliver maximum load precision while working within the highly confined structural boundaries of modern wind turbine towers and nacelles.
- EziJac Bolt Tensioners: Our modular EziJac hydraulic bolt tensioners deliver exceptionally precise axial load control, making them ideal for rapid, multi-tool simultaneous tightening configurations across tight turbine workspaces
- EziTite® Hydraulic Nuts & Hydraulic Bolts: Perfect for long-term vibration resistance, EziTite hydraulic nuts and bolts replace standard fasteners to maintain permanent, uniform joint clamping without manual striking or torquing.

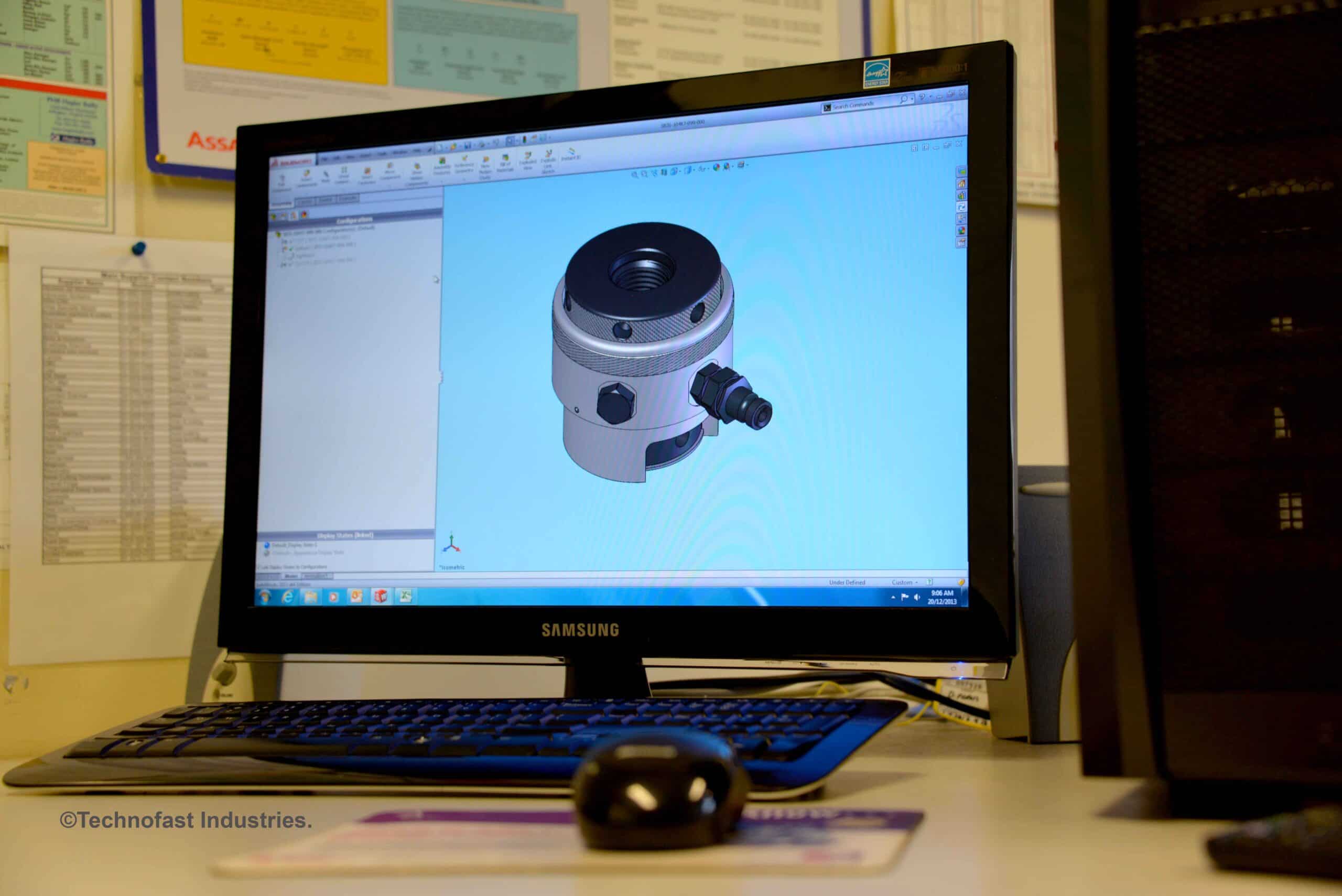

- Custom Hydraulic Bolting Design: For unique OEM geometries or restricted clearance zones, our engineering department provides rapid, specialised custom hydraulic bolting design services to build tailored tooling solutions.
Tensioning by Turbine Component

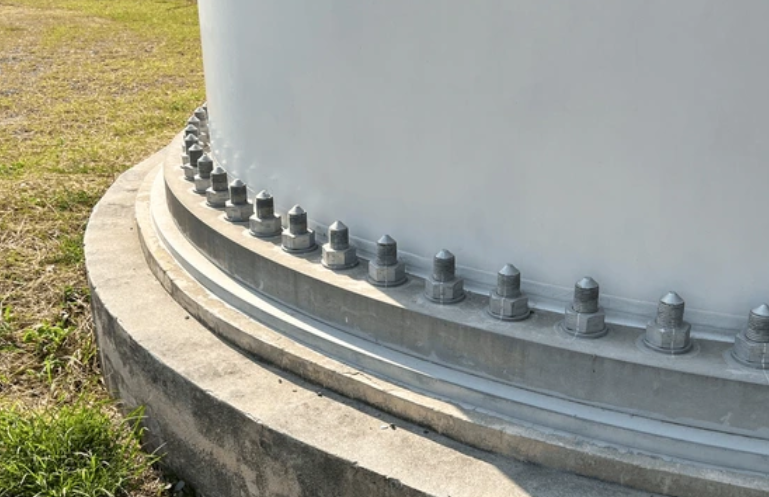

Foundation &
Anchor Bolts
The foundation interface must absorb the maximum overturning forces of the entire structure. Our hydraulic bolt tensioning tools apply massive, uniform preloads to heavy-duty foundation studs, protecting the concrete-to-tower transition zone from premature fatigue failure

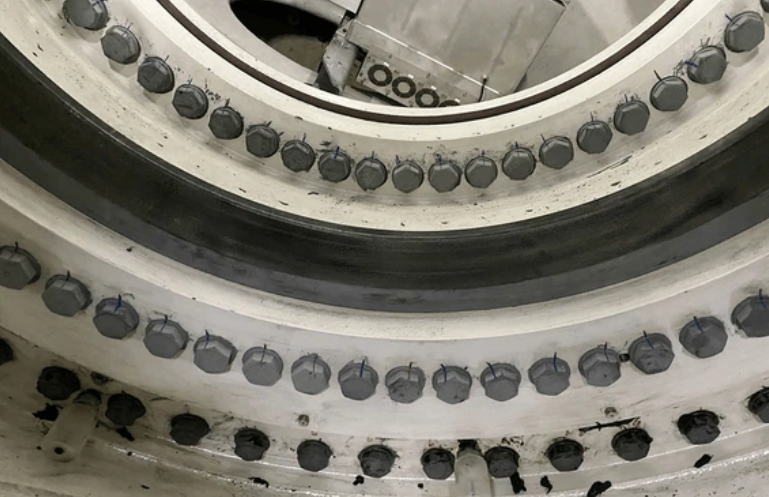

Tower Flange
Joints
Tower segments require swift, repetitive, and perfectly uniform tightening sequences during crane assembly. Utilising a simultaneous multi-tool configuration ensures parallel flange alignment, preventing structural gaps and drastically reducing installation time on site.

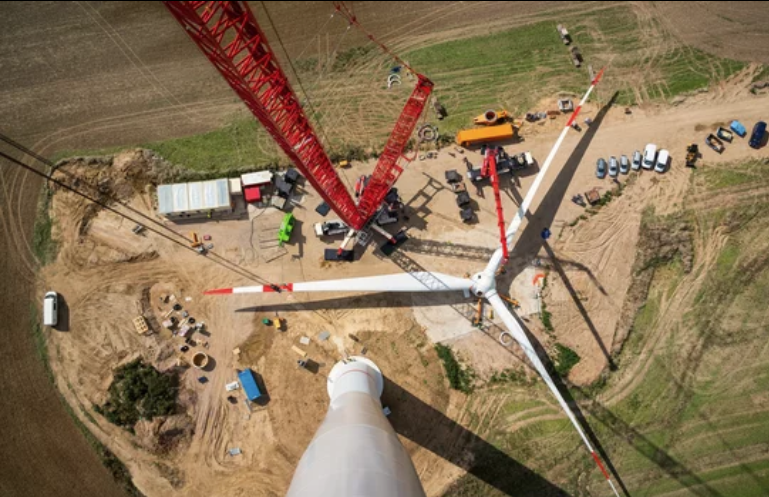

Rotor &
Hub Connections
Rotor blade roots, main shafts, and gearbox couplings experience severe, multi-directional operating stress. Compact, ultra-high-pressure Technofast tooling fits into these tightly confined nacelle spaces, delivering precise clamping force where physical clearance is highly restricted.

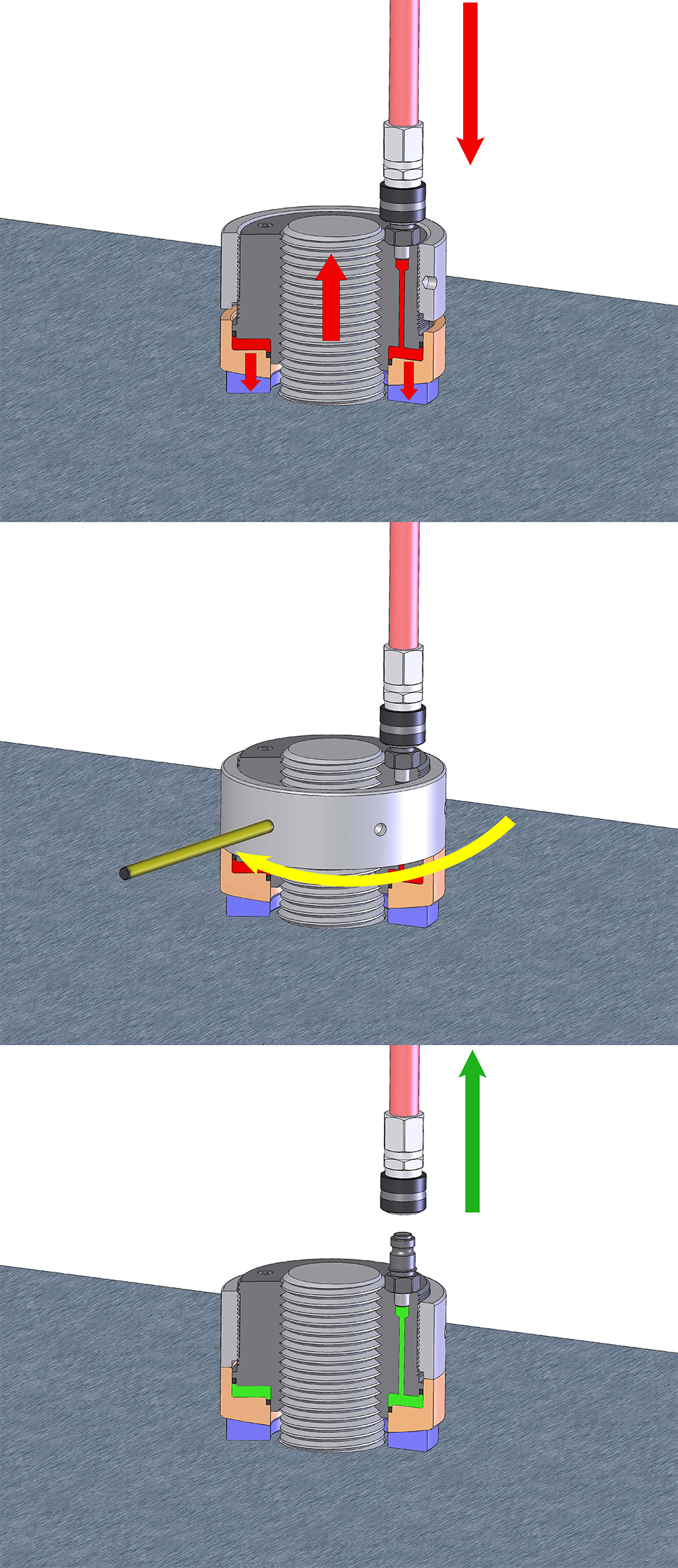

How the Tensioning Process Works
Why Choose Technofast
- Custom Tooling & Engineering: We provide rapid in-house prototyping, OEM compatibility analysis, and custom tool design to overcome severe structural clearance limitations on site
- Rigorous Quality & Compliance: Every system undergoes extreme high-pressure testing up to 2000+ bar and strict calibration loops to guarantee absolute precision and material traceability

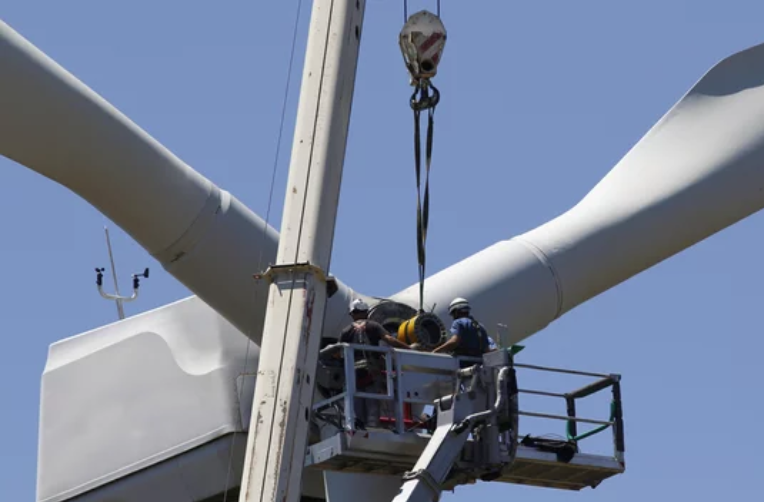

- Specialised Technical Support: Our team delivers critical joint auditing, on-site tool extractions, and direct field supervision to keep your complex maintenance workflows running safely on schedule
- Certified Operator Training: We protect your workforce and extend tool longevity through hands-on, certified training programs focused on high-pressure safety and controlled bolting compliance.
Trusted Across Heavy Industry
Technofast is a certified manufacturer specialising in critical joint integrity across a diverse range of global sectors, including sugar, mining and quarrying, oil and gas, power generation, wind, food and beverage, steelmaking, petrochemical, shipbuilding, and agriculture.
We have delivered proven, high-pressure engineering results for premier market assets, including Siemens, BHP, KHNP, Rio Tinto, and Framatome, to ensure safety-critical connections remain securely clamped under intense operational stress.
Frequently Asked Questions
What is wind turbine bolt tensioning?
Wind turbine bolt tensioning is a high-precision method that uses specialised hydraulic bolt tensioning tools to stretch structural fasteners axially. This direct stretching eliminates rotational thread friction entirely, ensuring that wind farm foundations, tower sections, and rotor hubs receive perfectly uniform and accurate clamping force to resist extreme environmental conditions.
Why is tensioning better than torque for turbine bolts?
Torquing introduces extreme friction between thread faces, causing unpredictable load variances. Hydraulic tensioning completely bypasses this friction by stretching the bolt vertically within its elastic limit. This allows the nut to be seated effortlessly by hand, resulting in a highly precise, repeatable, and verifiable joint preload.
Which turbine joints need hydraulic tensioning?
Hydraulic tensioning is critical for high-load, high-vibration joints, including foundation anchor bolts, structural tower segment flanges, main shaft couplings, gearbox assemblies, and rotor blade root connections. Any turbine interface subjected to severe cyclic vibration and heavy bending moments requires the uniform accuracy that only tensioning provides.
Can Technofast custom-design tensioning tools for a specific turbine?
Yes, Technofast specialises in custom hydraulic bolting design. Our in-house engineering team regularly develops bespoke, ultra-compact, or high-capacity tensioning solutions tailored to unique OEM specifications or restricted-clearance environments, ensuring you have the exact tool needed for complex or legacy wind turbine assets
Do you offer equipment hire or operator training?
Yes, we offer both comprehensive options to fully support your maintenance projects. You can access our fleet through our specialised equipment hire service to lower upfront capital costs. Additionally, we provide certified operator training to guarantee your crew handles high-pressure tooling safely and efficiently on site.
For non-standard requirements, contact our team to discuss your application needs. Enquire here.
Get in Touch
Contact us today to learn more about how Technofast’s hydraulic tensioning tools can enhance your operations. Our team is ready to provide customised solutions to meet your specific needs.
