Industrial Hydraulic Hoses for Bolt Tensioning
Industrial Hydraulic Hoses for Bolt Tensioning
Technofast’s premium range of industrial hydraulic hoses, high-durability hose tails, and comprehensive hydraulic hose packages are engineered specifically for high-pressure precision bolt tensioning used with our Hydraulic Bolt Tensioning products . In demanding industrial environments, efficiency, safety, and operational precision are paramount. Our high-performance hoses ensure safe, reliable, and continuous hydraulic operation across critical applications.
Whether you need to link multiple tensioners seamlessly or maximise your tool return speeds, Technofast delivers the ideal fluid-power solution. Our versatile hose configurations cater to every operational footprint, scaling from budget-friendly sequential loops to advanced, high-flow manifold and T-block systems across Australia and global markets
High-Performance Hose Package Systems
To suit various budgets and operational requirements, Technofast offers three distinct, high-performance industrial hydraulic hose arrangements.
Our systems scale from cost-effective sequential loops (daisy chain) to advanced, high-flow manifold and T-block layouts.

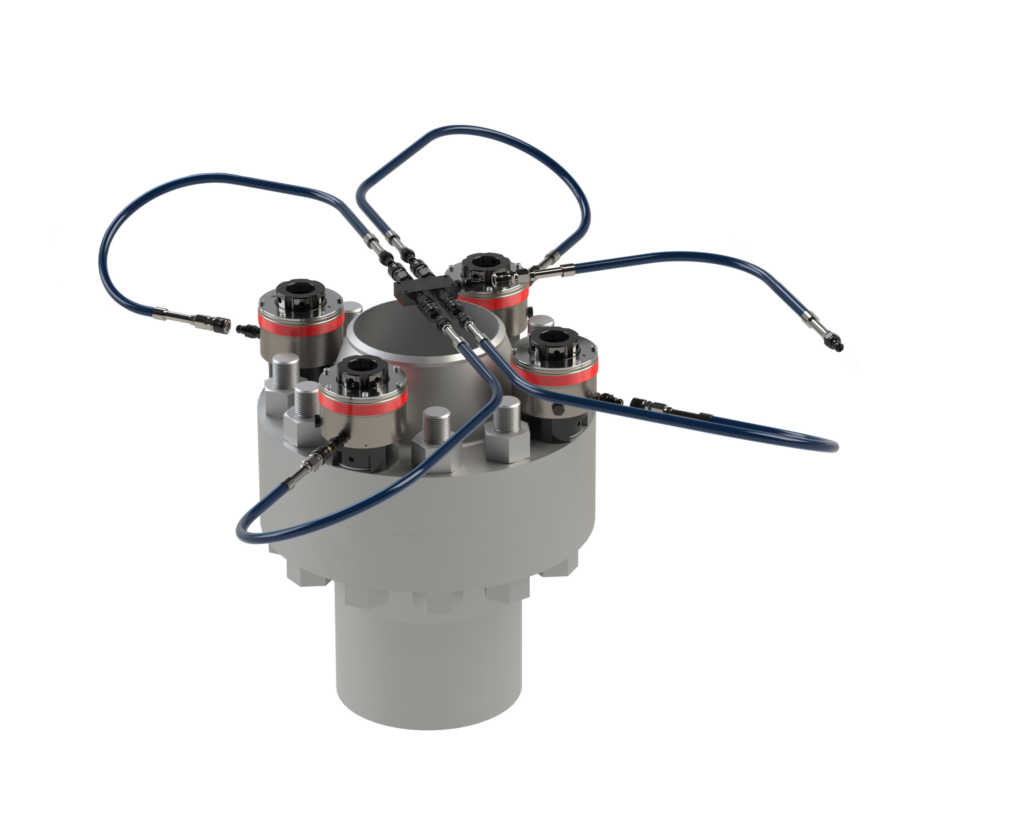

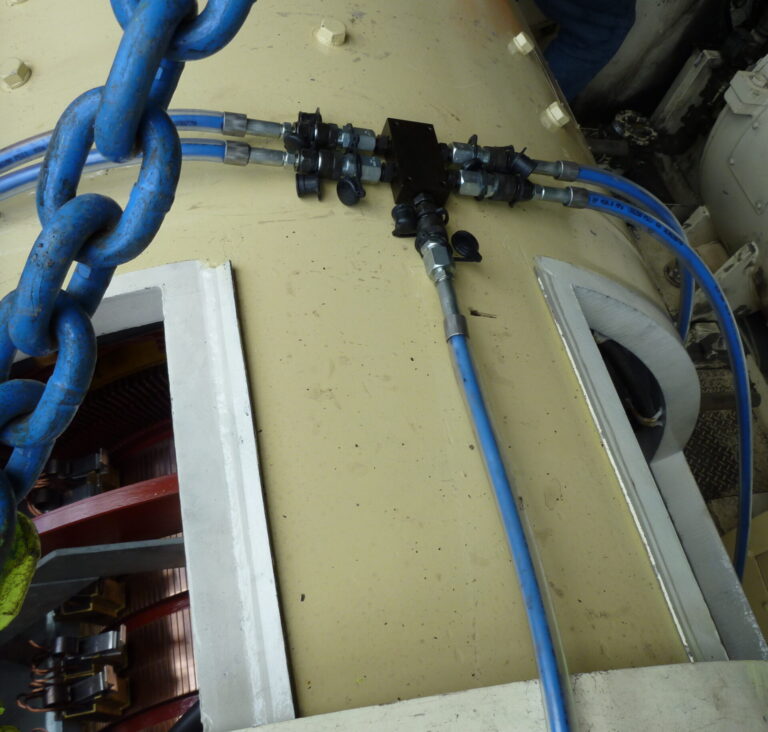

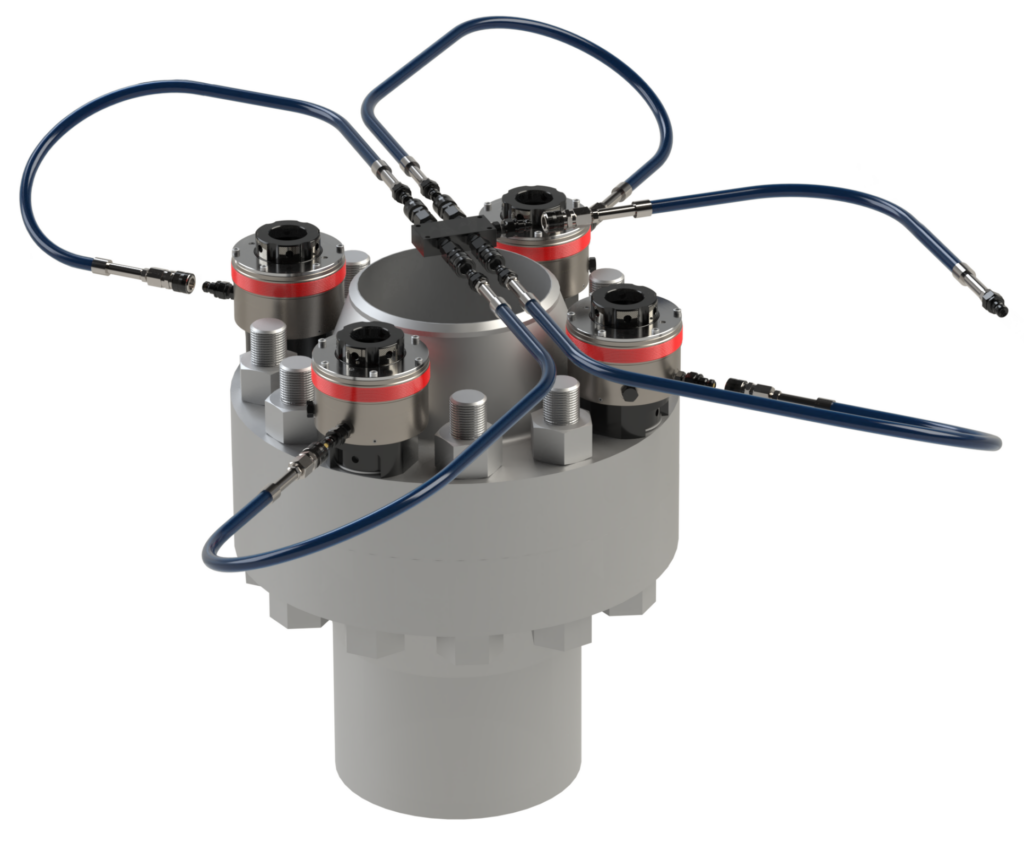

Optimised for High-Volume Tensioning

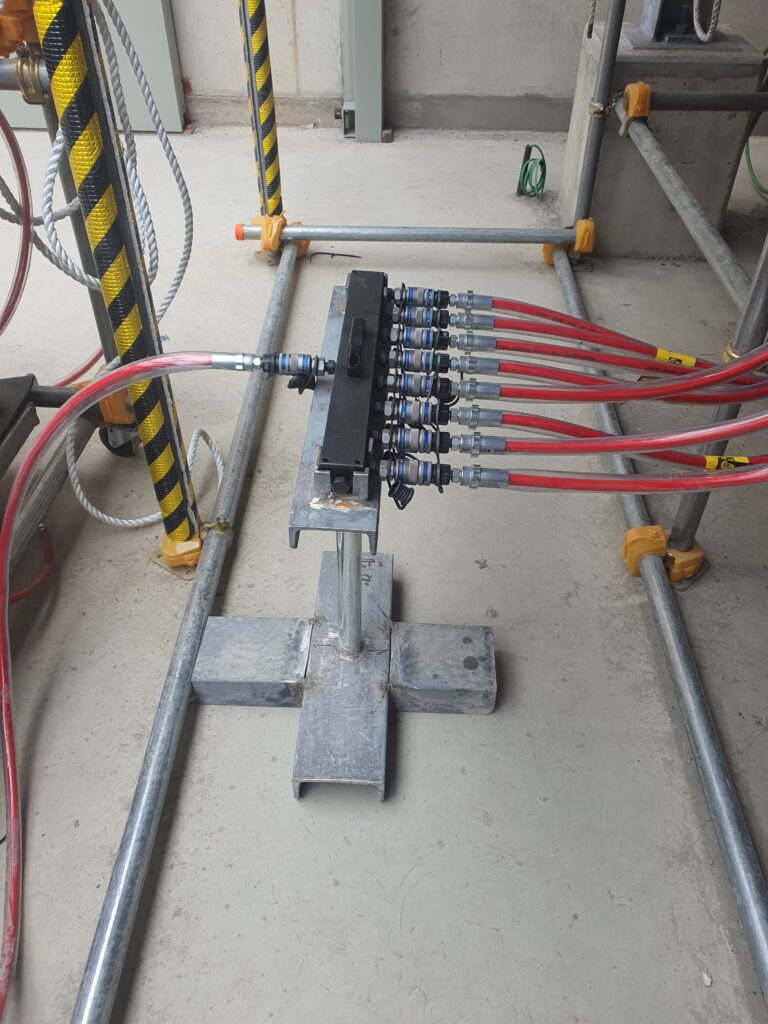

The Manifold Hose Package is designed for simultaneous tensioning across large groups of four to eight or more Hydraulic Bolt Tensioning tools. This system ensures even fluid distribution from a central point, making it ideal for critical applications where precise pressure balance and synchronised control are mandatory.
- High-Capacity Tensioning – Best suited for multiple hydraulic tools operating in unison
- Even Oil Flow – Reduces pressure imbalances for consistent tensioning results
- Reliable for Large-Scale Applications – Designed for industrial mining, construction, and heavy engineering use
Ideal For:
- Multi-point bolt tensioning
- Hydraulic nut tensioning in grouped setups
- Large-scale construction and mining operations
Manifold Hose Package Components:
- Bolt Tensioner or Hydraulic Nut/Bolt
- Customisable Manifold – Directs hydraulic flow efficiently to meet any application’s needs
- Link Hose – Connects multiple tools seamlessly
- Feed Hose from Pump – Ensures consistent pressure
- T-Block – Manages hydraulic distribution

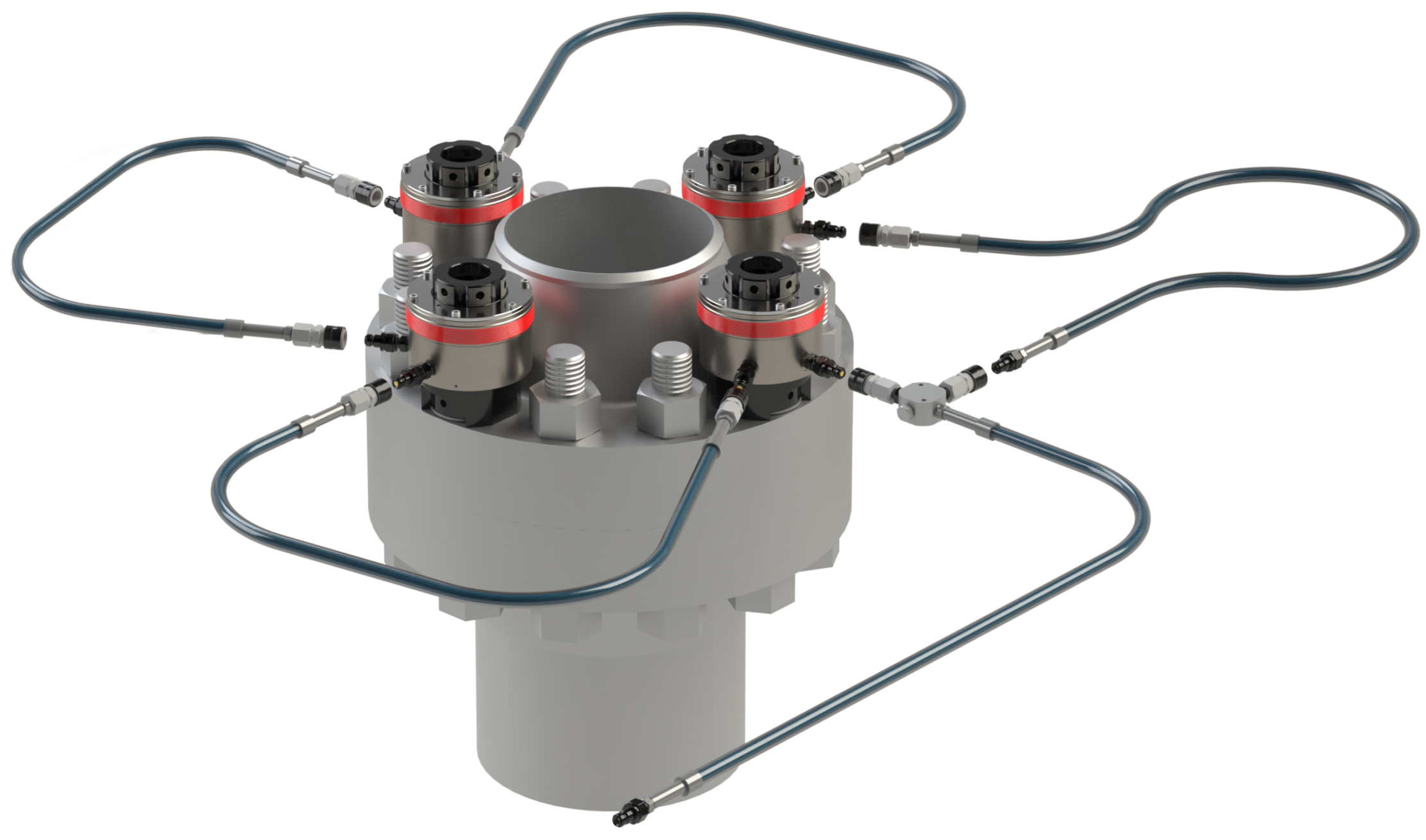

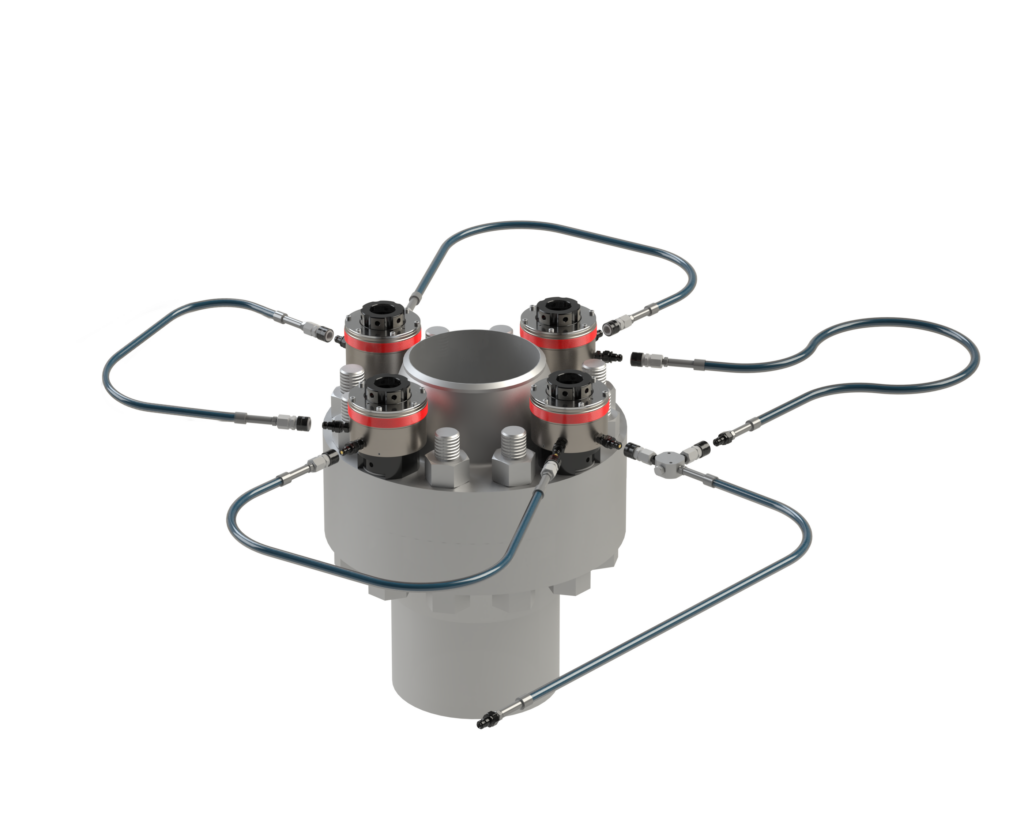

Cost-effective, Multi-Tool Hydraulic Connection
The Daisy Chain Hose Package offers an affordable way to interconnect multiple tensioners, hydraulic nuts, or bolts. Designed for operations where budget-friendly solutions are needed, this setup allows multiple tools to be linked in sequence. However, operators should note that return oil passes through several tensioners, which may extend reset times for Spring Return tools.
Tool Benefits:
- Affordable Hydraulic Connection – Ideal for setups where cost-effectiveness is a priority
- Versatile – Can be used for hydraulic nuts, bolt tensioners, and other hydraulic tools
- Customisable – Smaller setups can remove or adjust components for better efficiency
Ideal For:
- Cost-sensitive hydraulic tensioning setups
- Small to medium bolt tensioning projects
- Maintenance and repair operations in mining and construction
Daisy Chain Hose Package Components:
- Bolt Tensioner or Hydraulic Nut/Bolt (Supplied with an additional nipple)
- Interconnect Hose – Links multiple tools
- T-Blocked Hose (Feed Hose from Pump) – Provides controlled hydraulic flow
- Link Hose – Creates a continuous loop (Can be adjusted for smaller setups)

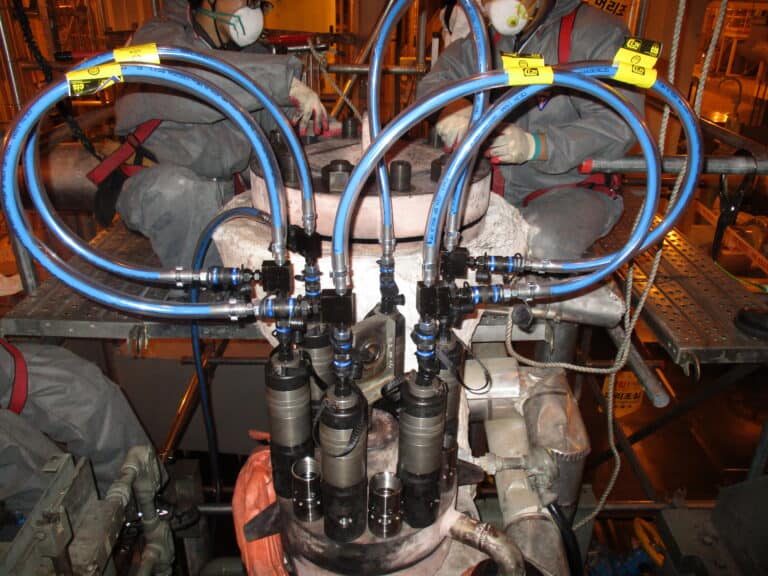

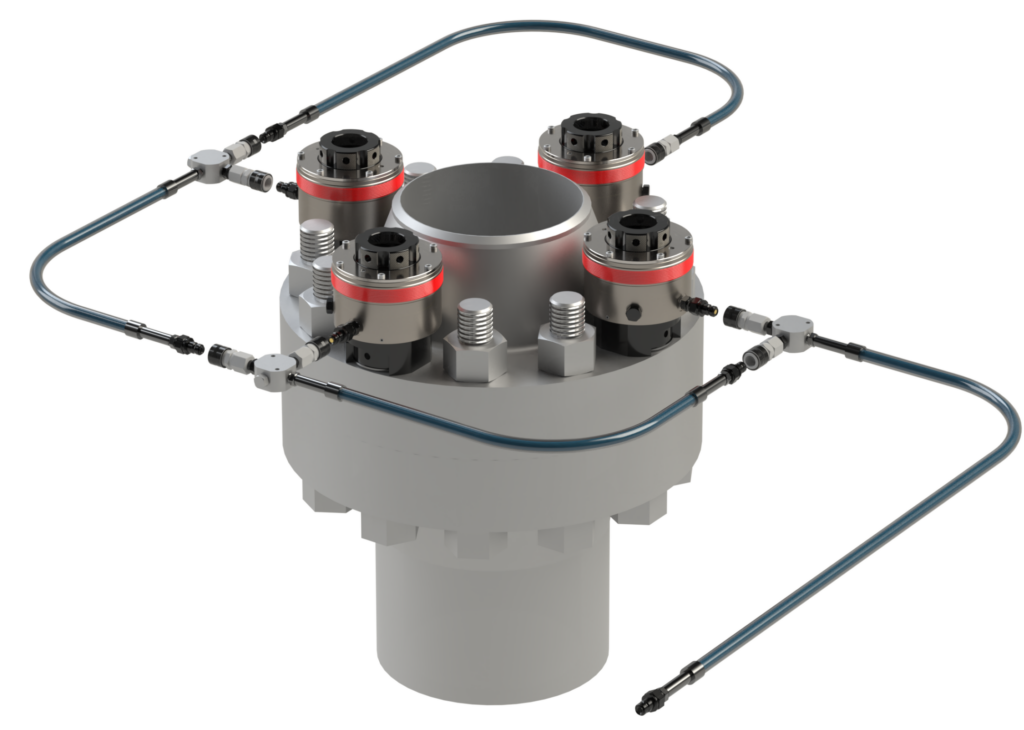

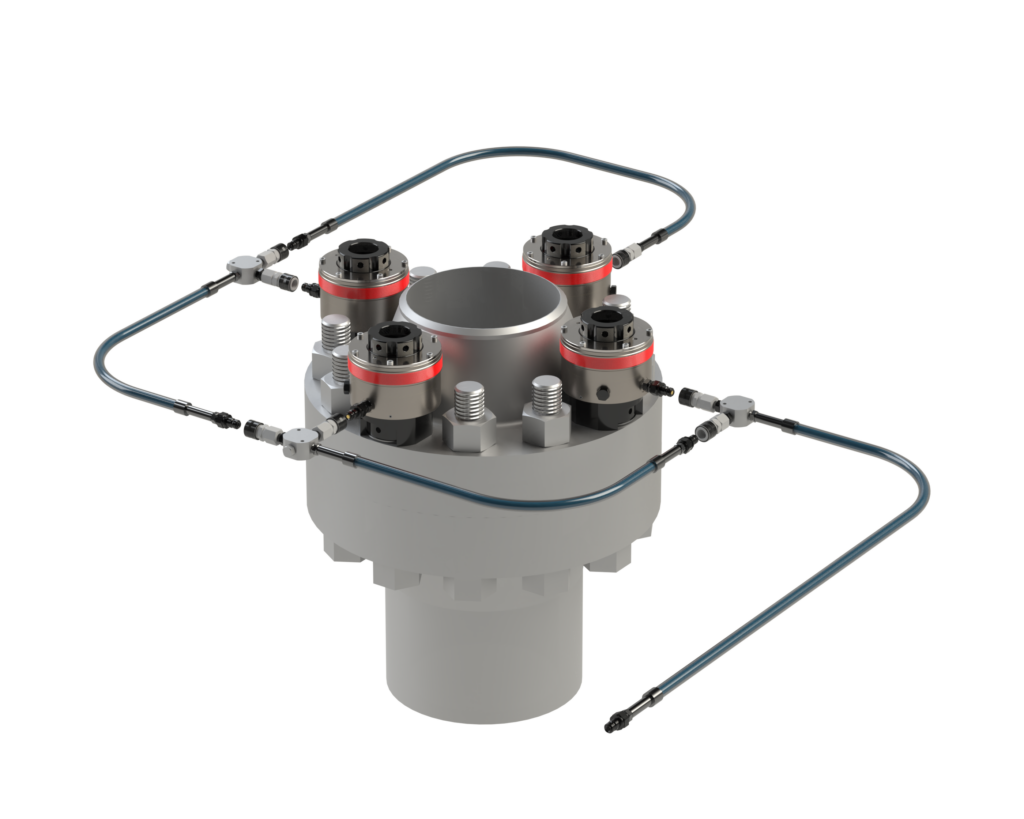

Fast-Return, High-Efficiency Hydraulic System
For high-volume tensioning, the T-Blocked Hose Package provides a 100% external hydraulic system with quick return speeds and even oil flow. This makes it the preferred choice for large-scale bolt tensioning applications that require consistent pressure and rapid tool reset times.
Tool Benefits:
- Optimised for High-Flow Operations – Ensures smooth oil distribution across multiple tools.
- Faster Return Speeds – External hydraulic system enables quick tool reset.
- Reliable for Heavy-Duty Applications – Suited for large-scale industrial and construction projects.
- High-Capacity Tensioning – Best suited for multiple hydraulic tools operating in unison.
- Even Oil Flow – Reduces pressure imbalances for consistent tensioning results.
- Reliable for Large-Scale Applications – Designed for industrial mining, construction, and heavy engineering use.
Ideal For:
- Large-scale hydraulic tensioning
- Mining and heavy engineering projects
- Time-critical mining shutdowns,
- Equipment overhauls and heavy engineering turnarounds
T-Block Hose Package Components:
- Bolt Tensioner or Hydraulic Nut/Bolt
- T-Blocked Hose – High-capacity oil flow
- Feed Hose from Pump – Ensures continuous hydraulic pressure
- Link Hose – Connects tools efficiently

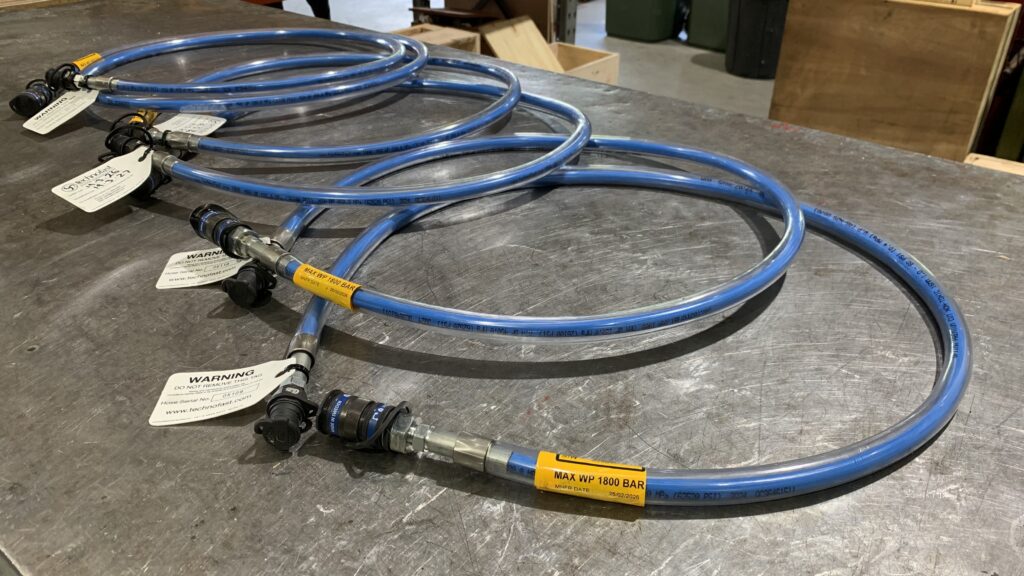

Hose & Fitting Specifications
Selecting the correct industrial hydraulic hoses requires matching your specific tool count, budget targets, and required cycle speeds. The comparison matrix below outlines typical system configurations and performance attributes for our complete packages, alongside our ultra-high-pressure hydraulic hose fittings metrics
| Hose Type | Fittings Configuration | Max. Working Pressure | Min. Bend Radius | Standard Length Options | |
|---|---|---|---|---|---|
| Link Hose (PU-HGL Series) | 1x CEJN Female & 1x CEJN Male | 1,500 Bar (21,750 PSI) | 130 mm | 0.9m, 1.5m, 3.0m, 4.0m, 5.0m, 8.0m | |
| Inter-connect Hose (Standard) | 2x CEJN Female Couplings | 1,500 Bar (21,750 PSI) | 130 mm | 0.9m - 8.0m range | |
| Inter-connect Hose (90° Swivel) | 1x Std Female & 1x 90° Female Swivel | 1,500 Bar (21,750 PSI) | 130 mm | 5.0m and 8.0m standard sizes | |
Technofast: Authorised CEJN Distributor for Industrial Hydraulic Hoses
Technofast is proud to be an authorised Australian distributor for CEJN, the world leader in ultra-high-pressure connection technology. Standard fluid power lines cannot cope with intense tensioning forces, which is why our high-performance industrial hydraulic hoses are equipped exclusively with genuine CEJN quick-connect couplings and safety-locked fittings.
By integrating these premium, multi-bar rated components into our complete hydraulic hose packages, we maintain the highest safety standards across heavy industry. We ensure your maintenance teams receive efficient, durable fluid transfer configurations engineered to prevent dangerous bursts and eliminate leak paths on site.
Why Choose Technofast for Industrial Hydraulic Hoses?
Selecting the right line management setup comes down to choosing equipment you can trust implicitly when the pressure steps up. Our high-pressure lines stand completely apart from general machinery plumbing because they are built explicitly for heavy industrial bolt tensioning applications:
- High-Pressure Hydraulic Hoses: Every line features high-tensile multi-spiral reinforcement designed to handle intense working pressures up to 1,500 Bar smoothly
- Optimised Hydraulic Hose Packages: Internal line dimensions are precisely matched to our high-flow pumps, ensuring uniform oil distribution and identical tool reset times across your entire flange layout
- Certified Industrial Hose Assemblies: Every hose circuit we supply carries an official factory pressure test certificate and comes standard with safety-locked, genuine CEJN couplings
Because we design and manufacture complete, patented hydraulic bolting systems from the ground up, we ensure that your hose arrangements are perfectly configured to fit your exact tool layout and workspace constraints.
Hydraulic Hoses, Couplings & Fittings We Supply
When you are dealing with ultra-high pressures, cutting corners on component quality is a massive safety risk.
As an authorised Australian distributor for CEJN quick-connect couplings, and the sole distributor for SITEC high-pressure technology, Technofast only supplies genuine, fully certified gear.
Regular industrial hydraulic hose fittings simply aren’t rated for the extreme pressures used in modern bolt tensioning equipment.
Our hose product range bridges the gap between your high-pressure pumps and heavy tooling, making sure your team works with parts engineered to stop leaks and prevent dangerous bursts.
| Component | Primary Industrial Use | Pressure Contex | |
|---|---|---|---|

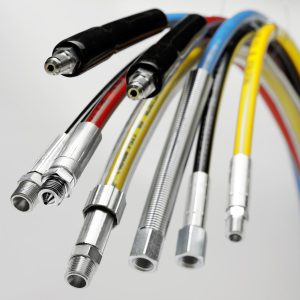

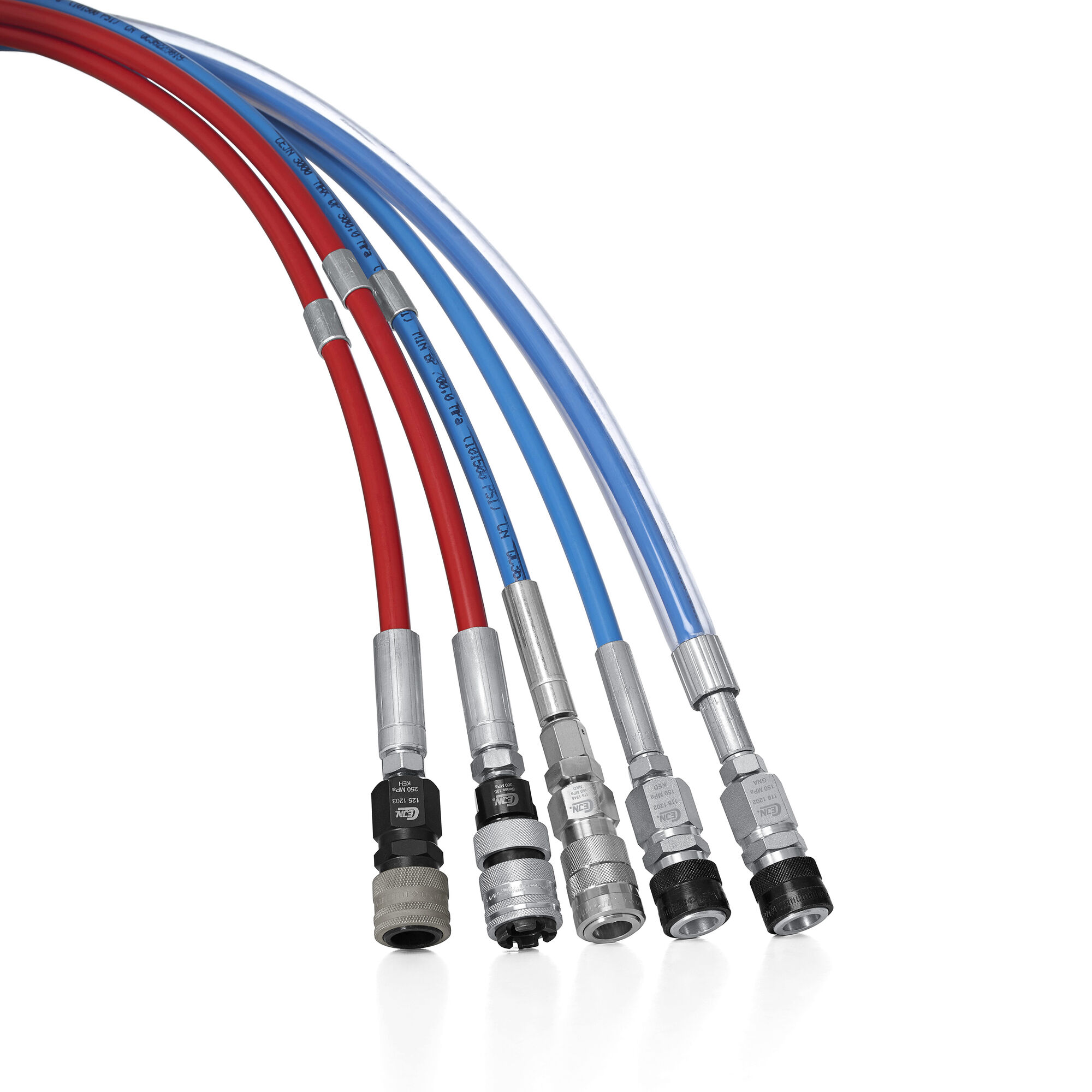

| High-Pressure Hoses | Connects high-pressure pumps to tensioners |
Rated safely for 700+ Bar applications.
Click Here for More Info on Hoses
|
|

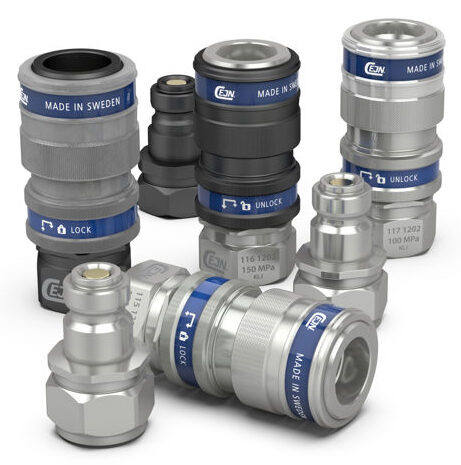

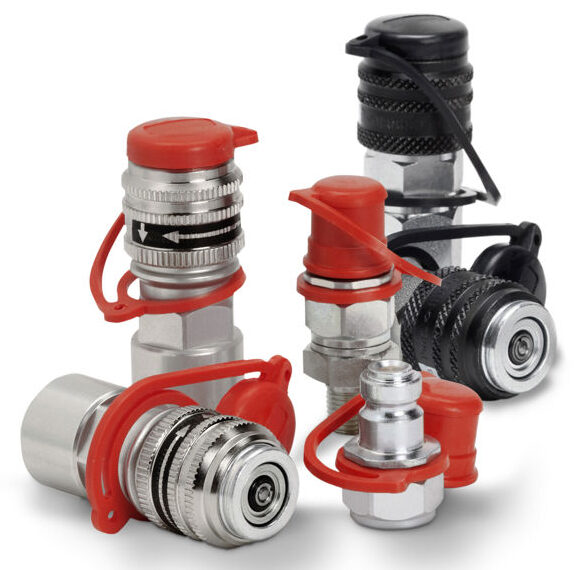

| CEJN Couplings | Rapid, leak-free, quick-connect tool connection |
Multi-bar rated with advanced safety locks.
Click Here for More Info on CEJN Products
|
|

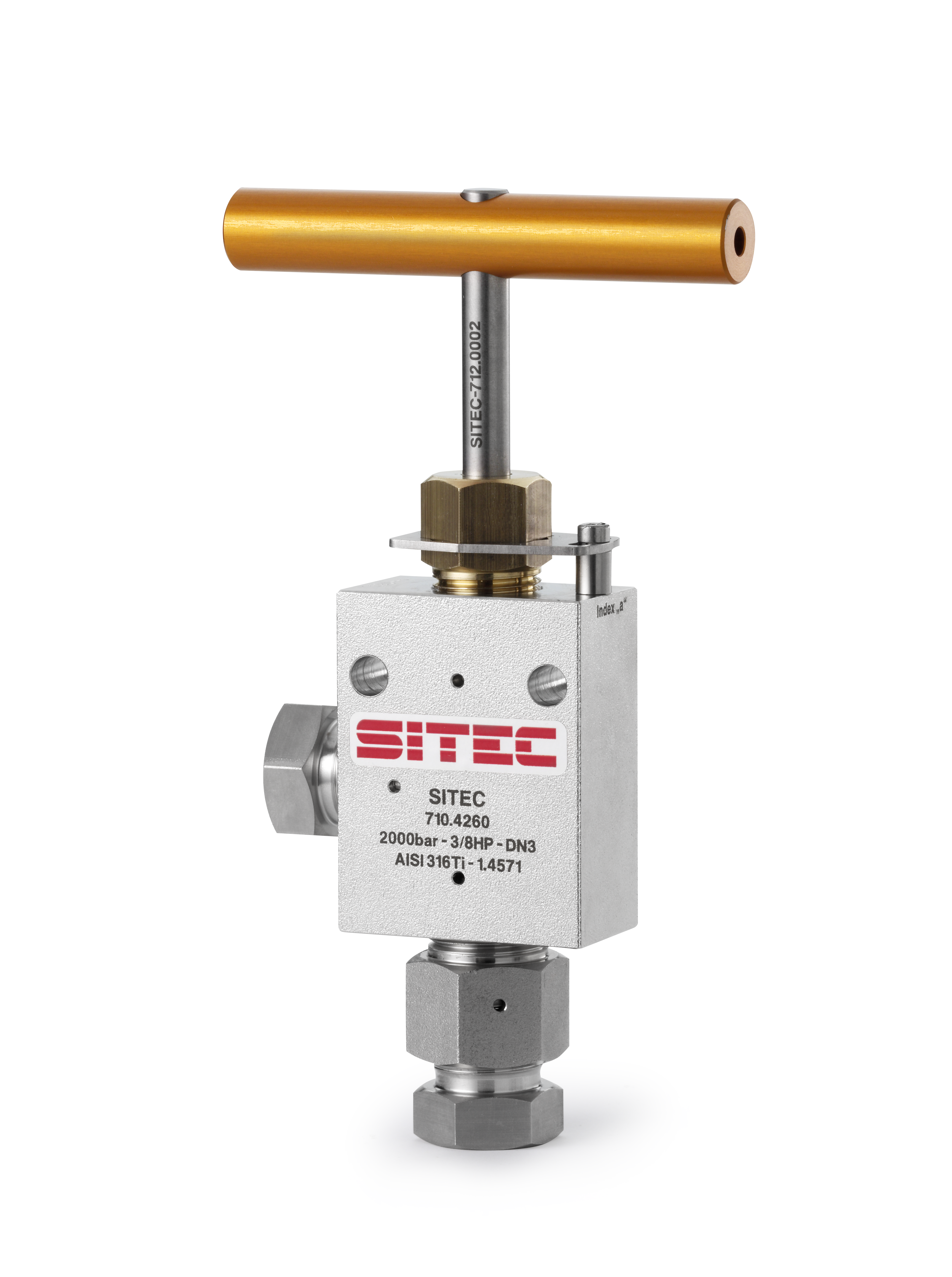

| SITEC Fittings | Secure manifold, adaptor and tool routing |
Extreme high-pressure fluid integrity.
Click Here for More Info on SITEC Products
|
|
Looking for the right hydraulic hose setup? Explore our full range here.
Frequently Asked Questions
What is the difference between manifold, daisy chain and T-block hose packages?
A manifold system feeds oil from one central block directly to each tool through individual lines. A daisy chain connects tools one after the other in a single loop using short jumper hoses. A T-block setup uses external T-junction pieces to split the line before it hits the tool, keeping the fluid path external for faster reset speeds.
How many tensioners can one hydraulic hose package run?
The maximum number depends on your pump’s flow rate and the volume of oil your tools require. Manifold and T-block configurations are specifically designed to distribute fluid efficiently across large multi-tool setups, while daisy chains are better suited for smaller, low-count loops.
Can I use these hoses with EziTite hydraulic nuts and EziJac tensioners?
Yes. Our complete line of high-pressure lines and packages is designed for full system compatibility with both EziTite and EziJac tooling networks to ensure reliable setup and operation.
What pressure rating do Technofast industrial hydraulic hoses operate at?
Our standard link lines and interconnect industrial hydraulic hoses are engineered and factory-certified for a maximum working pressure of 1,500 Bar (21,750 PSI), with a minimum burst rating of 3,000 Bar (43,500 PSI).
Do you supply replacement hose tails and fittings?
Yes. We stock a comprehensive range of genuine high-pressure replacement hose tails, adaptors, and multi-bar rated couplings to support your existing line assemblies.
