Products
Hoses
Technofast offer a full range of hydraulic hoses packages to suit all tensioning and lifting applications. All hoses sold by Technofast are supplied fully assembled and tested ready for operation.

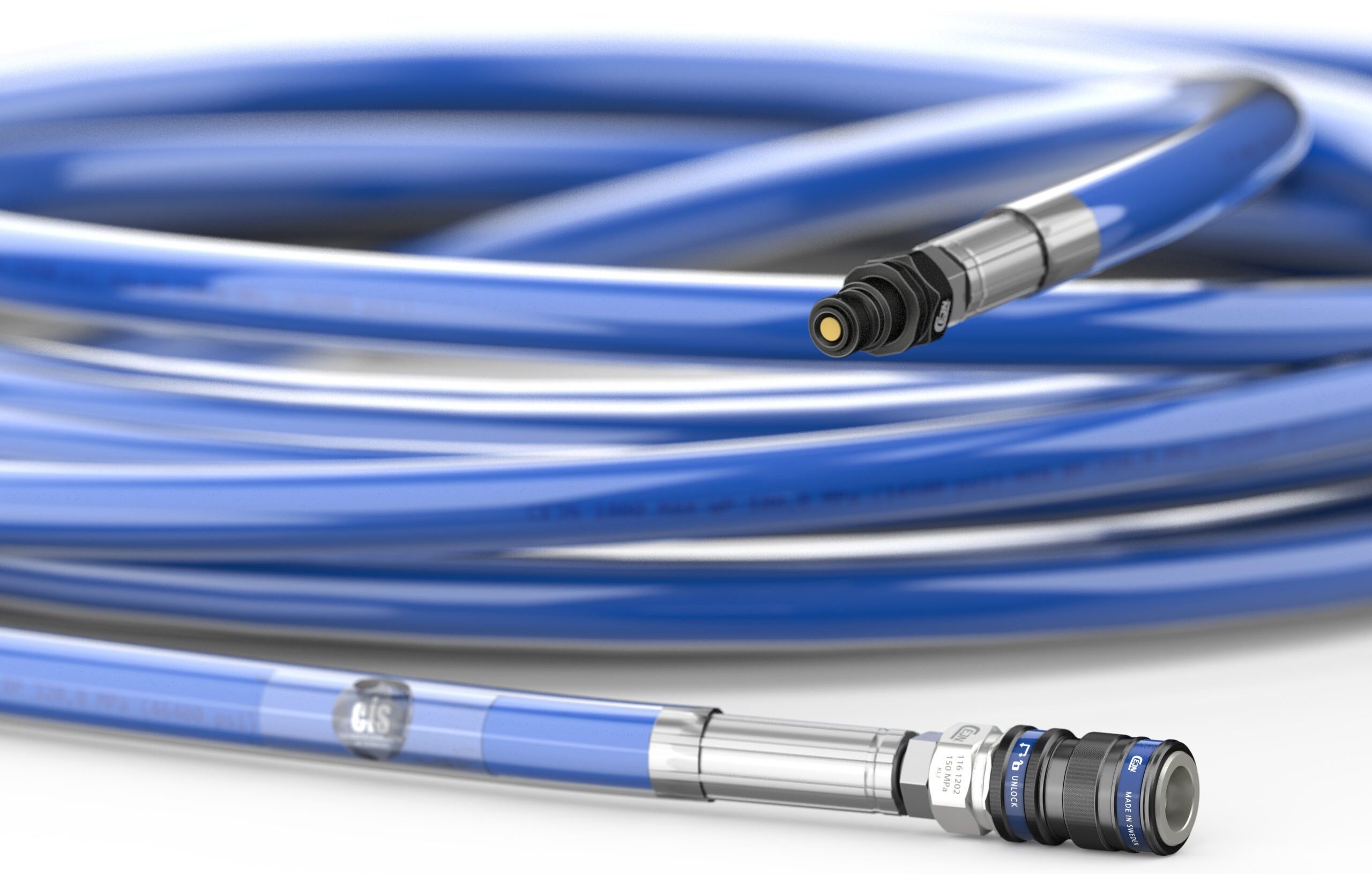

Link Hose
Hose comes complete with 2 CEJN male and female fitted
| Part Number | Max Working Pressure | Min Burst Pressure | (A) Hose length | Min Bend Radius |
|---|---|---|---|---|
| PU-HG090L | 1500 Bar | 3000 Bar | 0.9m | 130mm |
| PU-HG150L | 1500 Bar | 3000 Bar | 1.5m | 130mm |
| PU-HG300L | 1500 Bar | 3000 Bar | 3.0m | 130mm |
| PU-HG400L | 1500 Bar | 3000 Bar | 4.0m | 130mm |
| PU-HG500L | 1500 Bar | 3000 Bar | 5.0m | 130mm |
| PU-HG800L | 1500 Bar | 3000 Bar | 8.0m | 130mm |
| Longer or higher pressure hoses are available upon request. | ||||
Inter-connect Hose
Hose comes complete with 2 CEJN female couplers fitted
| Part Number | Max Working Pressure | Min Burst Pressure | (A) Hose length | Min Bend Radius |
|---|---|---|---|---|
| PU-HG090L | 1500 Bar | 3000 Bar | 0.9m | 130mm |
| PU-HG150L | 1500 Bar | 3000 Bar | 1.5m | 130mm |
| PU-HG300L | 1500 Bar | 3000 Bar | 3.0m | 130mm |
| PU-HG400L | 1500 Bar | 3000 Bar | 4.0m | 130mm |
| PU-HG500L | 1500 Bar | 3000 Bar | 5.0m | 130mm |
| PU-HG800L | 1500 Bar | 3000 Bar | 8.0m | 130mm |
| Longer or higher pressure hoses are available upon request. | ||||
T-Blocked Hose
Hose comes complete with 3 CEJN male and female fitted
| Part Number | Max Working Pressure | Min Burst Pressure | (A) Hose length | Min Bend Radius |
|---|---|---|---|---|
| PU-HG090L | 1500 Bar | 3000 Bar | 0.9m | 130mm |
| PU-HG150L | 1500 Bar | 3000 Bar | 1.5m | 130mm |
| PU-HG300L | 1500 Bar | 3000 Bar | 3.0m | 130mm |
| PU-HG400L | 1500 Bar | 3000 Bar | 4.0m | 130mm |
| PU-HG500L | 1500 Bar | 3000 Bar | 5.0m | 130mm |
| PU-HG800L | 1500 Bar | 3000 Bar | 8.0m | 130mm |
| Longer or higher pressure hoses are available upon request. | ||||
To watch our products in action head to our exclusive YouTube channel https://www.youtube.com/channel/UCAqydvMAlLO03poPUhcrUFw
