High Pressure Hydraulic Pumps
High Pressure Hydraulic Pumps for Bolt Tensioning
Industrial operations require uncompromising reliability when executing critical bolting procedures.
Technofast designs and manufactures a premium selection of high-pressure hydraulic pumps engineered explicitly to deliver controlled, precise fluid pressure for heavy-duty applications. As specialists in the field, our pumping systems are purpose-built to energise hydraulic bolt tensioners and hydraulic nuts, ensuring uniform joint loading while eliminating the risks and friction guesswork associated with conventional torque tightening.
Whether your facility requires rapid cycle times or portable off-grid capability, these systems provide the exact force required to secure your most critical assets safely.
Compare our Hydraulic Pumps
Selecting the correct hydraulic bolt tensioning pump depends on your operational power source, duty cycle, and site conditions. The comparison table below outlines the core mechanical specifications of our standard product range to assist with your selection.
| Pump Model | Power Source | Portability Class | Primary Application |
|---|---|---|---|
| Blue Rhino | Electric | Heavy-Duty Frame | High cycle wind turbine installation & heavy plant workshops |
| Air Hydraulic | Compressed Air | Protective Roll Cage | Pneumatic site infrastructure & intermediate on-site tooling |
| Hand Pump | Manual | Ultra-Lightweight | Remote site maintenance & low-volume tensioning tasks |
Blue Rhino Electric Tensioner Pumps
The Blue Rhino Electric Tensioner Pump is a heavy-duty system engineered specifically for bolt tensioning environments, such as wind turbine installations and heavy manufacturing facilities.
This electric-hydraulic pump is built to maintain performance under demanding operational conditions, resisting dust and low-voltage fluctuations.
- High Output Capacity: Standard industrial tensioning pressures, with higher options up to 30,000 psi on request
- Operator Safety: Equipped with a remote pendant control and integrated emergency stop switches
- System Customisation: Optional oil coolers, digital pressure gauges, or alternative fluid systems.

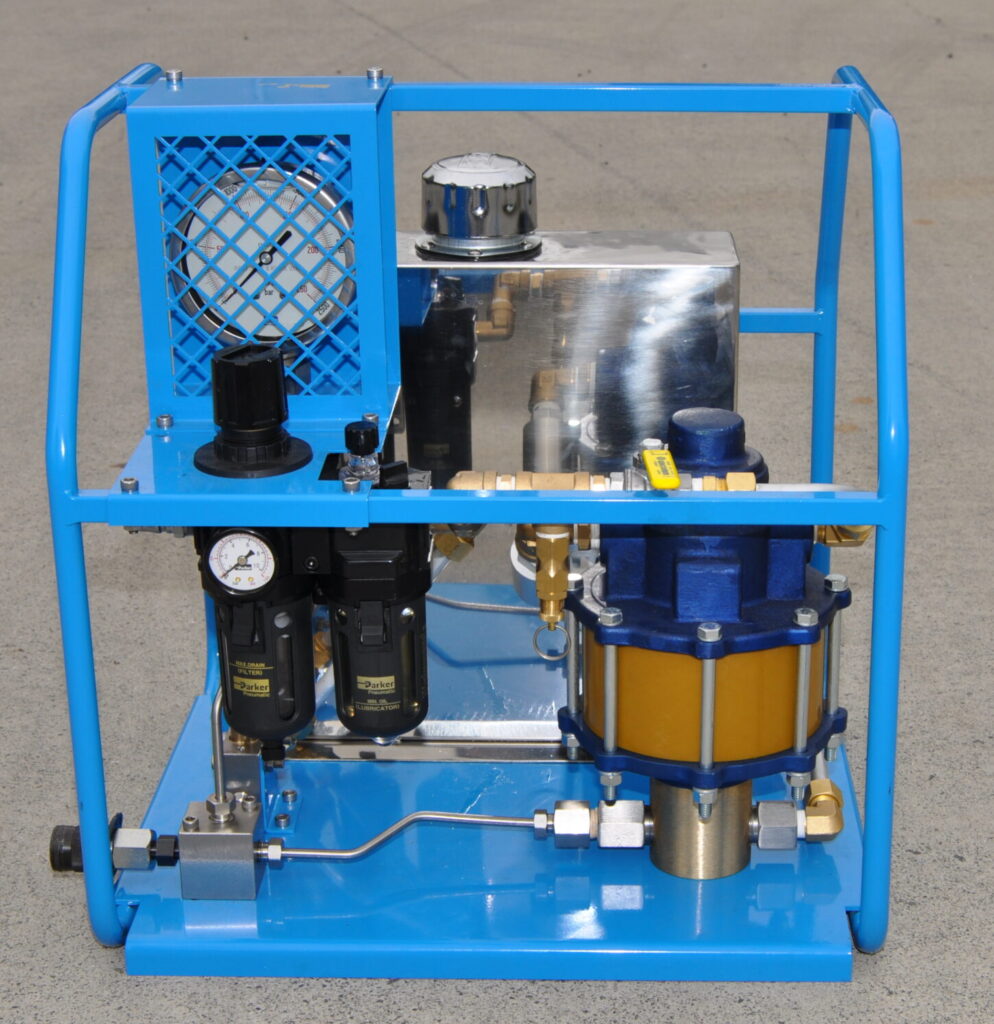

High Pressure Air Hydraulic Pumps
For sites equipped with compressed air lines, our High Pressure Air Hydraulic Pumps offer a pneumatically driven alternative.
- Durable Construction: Features a stainless steel oil reservoir tank paired with a protective outer roll cage
- Built-In Protection: Incorporates a safety pressure relief system to prevent systemic over-pressurisation
- Site Mobility: Designed with a portable architecture to allow for straightforward positioning across scaffolding or restricted platforms.
Lightweight Hydraulic Hand Pumps
When portability and standalone deployment are required, Technofast Lightweight Hydraulic Hand Pumps provide a mechanical solution.
- Aviation-Grade Materials: Manufactured from high-strength light alloy metal, reducing the total weight compared to conventional steel-bodied manual pumps
- Reduced User Fatigue: Engineered with dual-stage relief valves that lower the physical handle effort required to generate high tensioning pressures
- Standalone Utility: Entirely self-contained, requiring zero external utility connections for field service work
Matching a pumping system to your workflow is essential to maintain structural safety and operational efficiency:
- Power Infrastructure: Utilise the Blue Rhino series where continuous electrical lines are accessible, or select air-driven configurations for facilities equipped with compressed air networks
- Tool Configuration: High-volume applications involving simultaneous multi-tool linking require the continuous flow of electric or air-driven pumps, while standalone joints are easily managed with manual systems
- Portability Demands: Compact, isolated, or restricted spaces benefit from the standalone footprint of an alloy hand pump
Frequently Asked Questions
What types of high pressure pumps do you supply for bolt tensioning?
We supply three primary types of hydraulic pumps: electric-powered units (Blue Rhino), compressed air-driven (Air Hydraulic) pumps, and manual, aviation-alloy hand pumps.
How do I choose between an electric pump and an air hydraulic pump?
Electric models are ideal for high duty cycles where continuous electrical infrastructure is present. Air-driven models should be selected if you are working on sites with established compressed air networks or compressed air lines.
What makes Technofast hand pumps lighter than standard models?
Our hand pumps are manufactured from specialised lightweight alloy metals instead of heavy standard steel. This design cuts the total weight of the unit in half without sacrificing structural pressure limits.
Can these pumps run multiple bolt tensioners at the same time?
Yes. Both our electric and air-hydraulic pumps can be connected to interlinked hydraulic hose circuits to apply simultaneous, balanced tension across multiple studs or nuts.
Make sure your high-pressure setups are safe, certified, and perfectly matched to your application parameters.
Get in touch with the expert Technofast team today to request a quote.
Contact our team on +61 (0)7 3803 6550 or fill out our quick online enquiry form.
